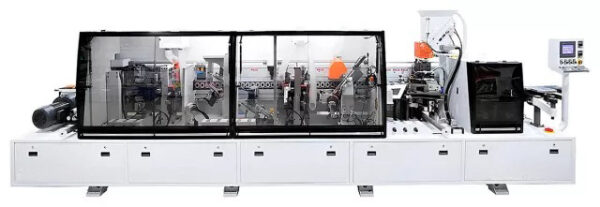

EdgeBander LEF536UHQLP

Feeding

• Feeding Speed, m/min: 15 / 23
• Feeding Motor Power, kW: 2.2
• Motor RPM: 1430
• Frequency, Hz: 50

Edge Material Dimensions

• Edge Material Thickness, mm: 0.4 – 3
• Workpiece Thickness, mm: 9 – 60
• Minimum Workpiece Dimensions (L x W), mm: 140 x 60

General Characteristics

• Recommended Equipment Load: 2 shifts (16 hrs)
• End Heating: Available
• Thickness Adjustment for Pressure Beam: Electric drive
• Types of Adhesives Used: EVA / PUR
• Edge Thickness Adjustment System: Pneumatic quick set adjustment

Pre-Milling Unit

• Cutter Parameters, mm: Ø 100 x 30 H65
• Milling Motor Power, kW: 2 x 2.2
• Motor RPM: 12,000
• Frequency, Hz: 200

Double Motor End Trimming Unit

• End Trimming Saws, mm: Ø 100 x 22
• End Trimming Motor Power, kW: 2 x 0.37
• Saw RPM: 12,000
• Frequency, Hz: 200

Overhang Milling Unit

• Overhang Milling Cutters, mm: Ø 69; Z4
• Motor Power, kW: 2 x 0.75
• Motor RPM: 12,000
• Frequency, Hz: 200

Double Motor Corner Rounding Unit

• Corner Rounding Cutters, mm: Ø 70 x Ø 16 H16 Z3
• Polishing Motor Power, kW: 2 x 0.37
• Motor RPM: 12,000
• Frequency, Hz: 200
• Maximum Workpiece Thickness, mm: 60
• Minimum Workpiece Length, mm: 140

Radius Scraping Unit

• Radius Tool, mm: R2H
• Radius Scraping Blades, mm: 20 x 12 x 2R2H

Flat Scraping Unit

• Flat Scraping Blades, mm: 15 x 15 x 2.5

Polishing Unit

• Polishing Motor Power, kW: 2 x 0.37
• Motor RPM: 1350
• Frequency, Hz: 50
• Disc Diameter, mm: 150 / 22

Dust Collection

• Duct Diameter, mm: 100
• Number of Ducts: 5
• Performance, m3/h: 6000

Pneumatics

• Required Pressure, Bar: 7
• Air Consumption, l/min: 450
• Compressor Capacity, l/min: 600

Energy Consumption

• Voltage, V: 380
• Total Power, kW: 14

Dimensions

• Length, mm: 6600
• Width, mm: 1100
• Height, mm: 1900
• Weight, kg: 2600
