Saw Unit Specifications for Model LP330
Cut Length:
- Max Cut Length: 3300 mm
- Max Material Dimensions: 3300 x 3300 mm
- Main Saw Blade Protrusion: 120 mm
Saw Unit Feed Speed:
- Feed Speed: 5 – 100 m/min
- Idle Speed: 100 m/min
- Feed Carriage Servo Motor Power: 2 kW

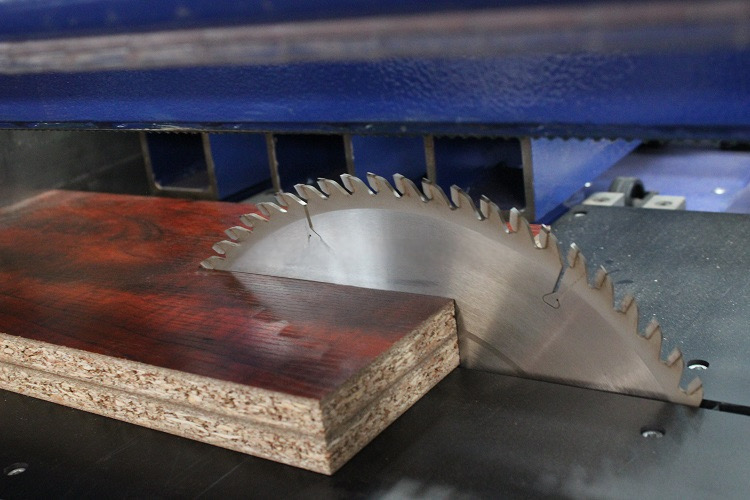

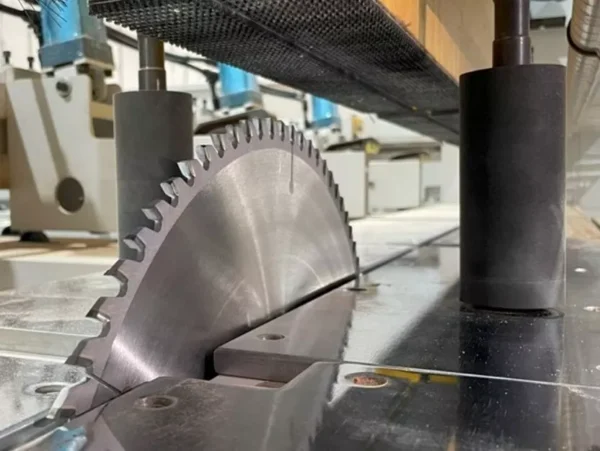

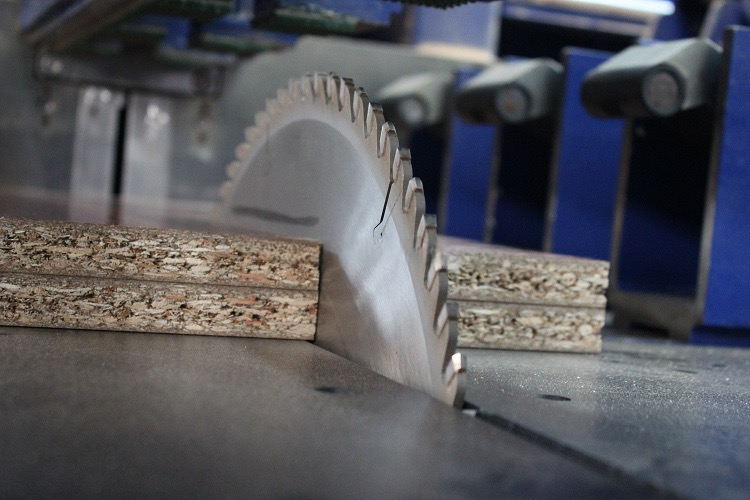

Main Saw Blade:
- Diameter: 400 mm (450 mm optional)
- Arbor Size: 75 mm
- Rotation Speed: 4000 rpm
- Motor Power: 18.5 kW

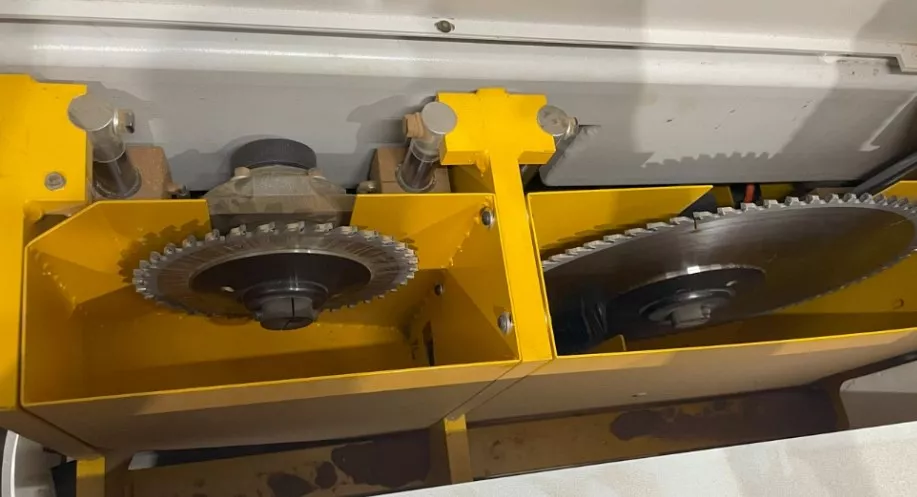

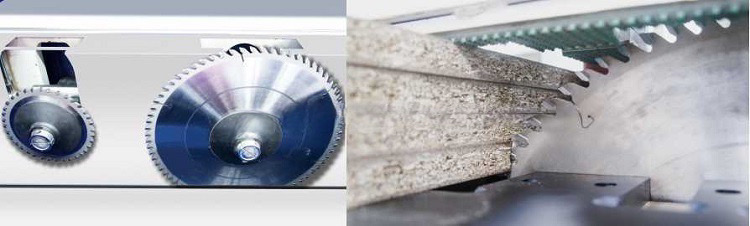

Scoring Saw:
- Diameter: 200 mm
- Arbor Size: 45 mm
- Rotation Speed: 6000 rpm
- Motor Power: 2.2 kW
General Specifications:

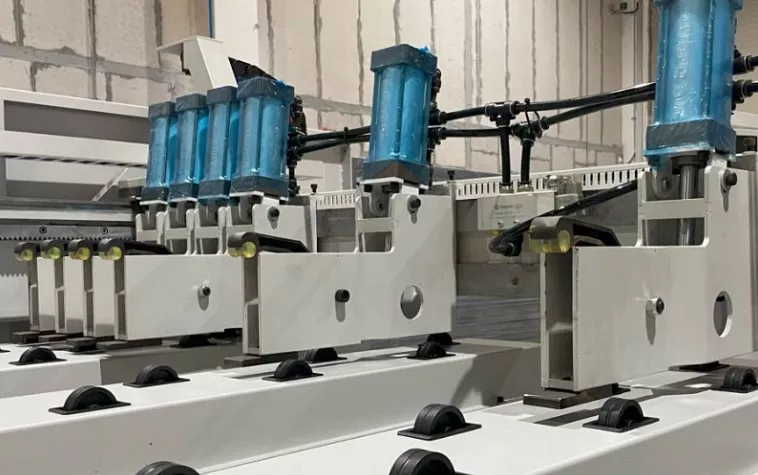

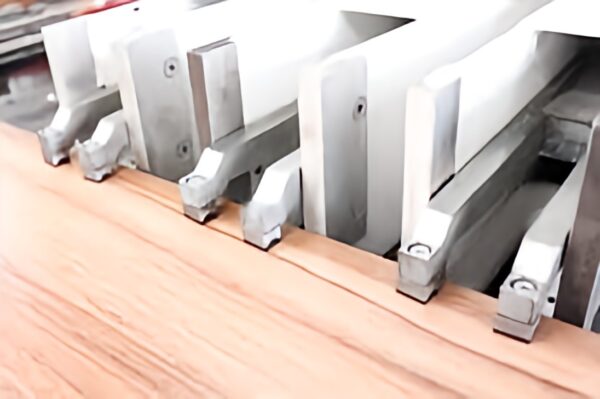

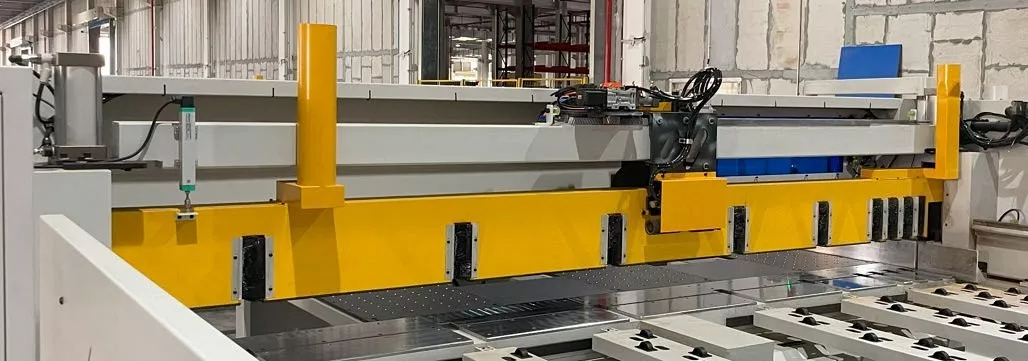

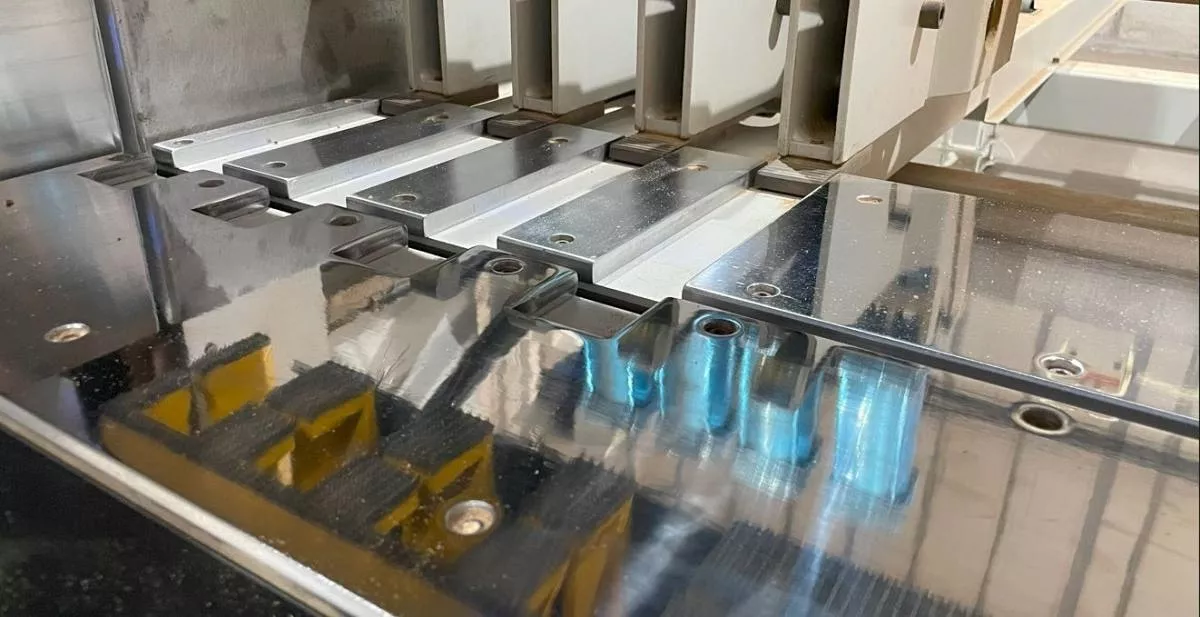

- Number of Pneumatic Grippers: 9
- Loading Type: Front
- Total Power: 30.1 kW
- Air Consumption: 200 l/min
- Worktable Length: 3 x 1900 mm
- Side Aligner: Roller
- Electronic Pusher Max Speed: 100 m/min
- Pusher Feed Servo Motor Power: 2 kW
Dust Collection:
- Duct Diameter: 4 x 100 mm; 2 x 150 mm

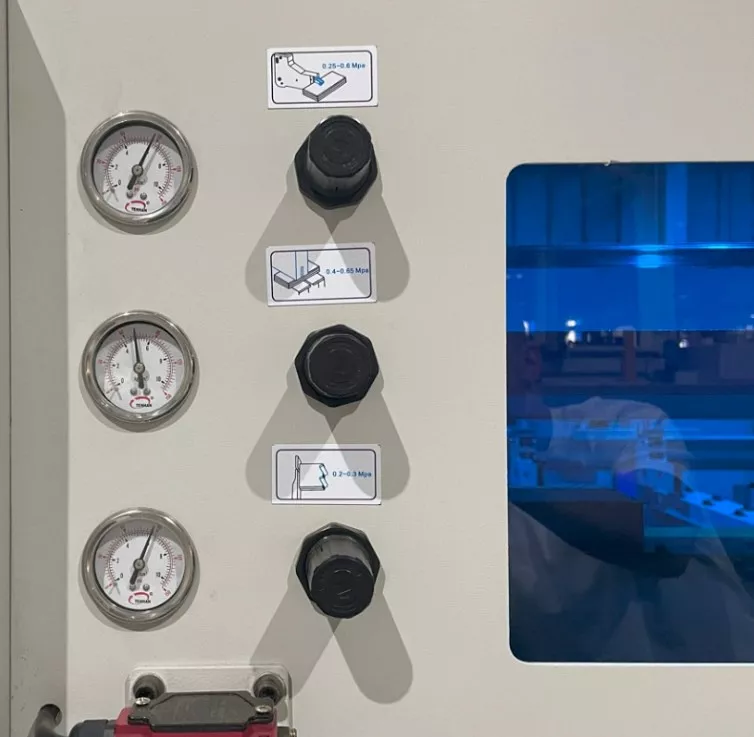

Pneumatics:
Dimensions:
- Length: 5500 mm
- Width: 6100 mm
- Height: 1750 mm
- Weight: 6000 kg

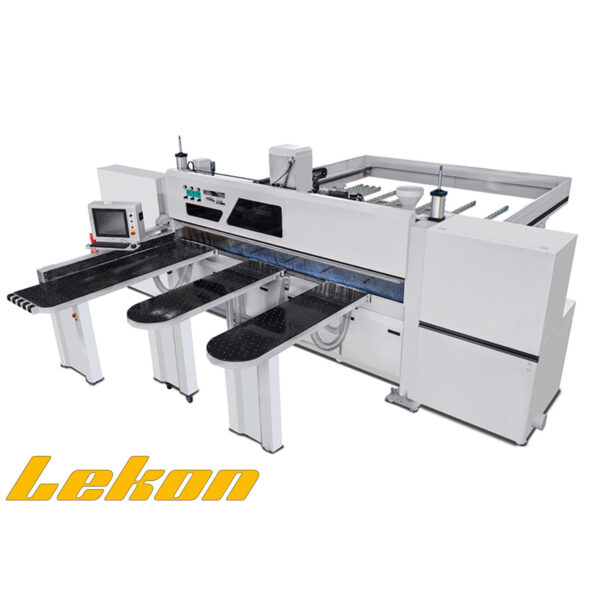

Product Description

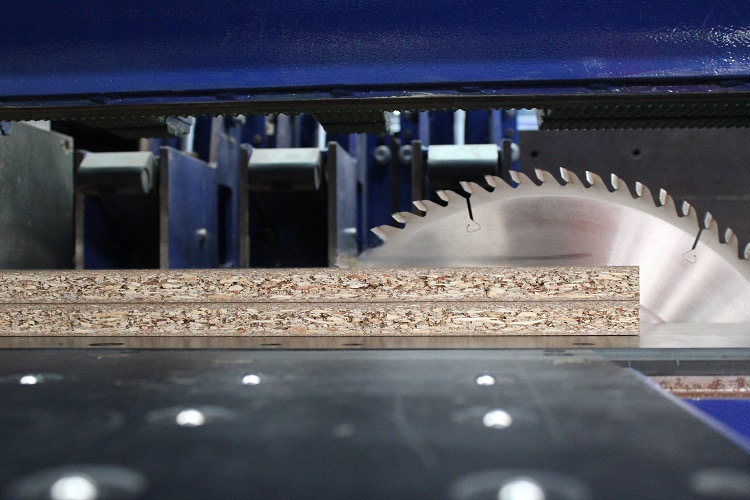

The machine is primarily used for cutting various types of density boards, particle boards, wood-based panels, ABS panels, PVC panels, organic glass plates, and solid wood.
Features:

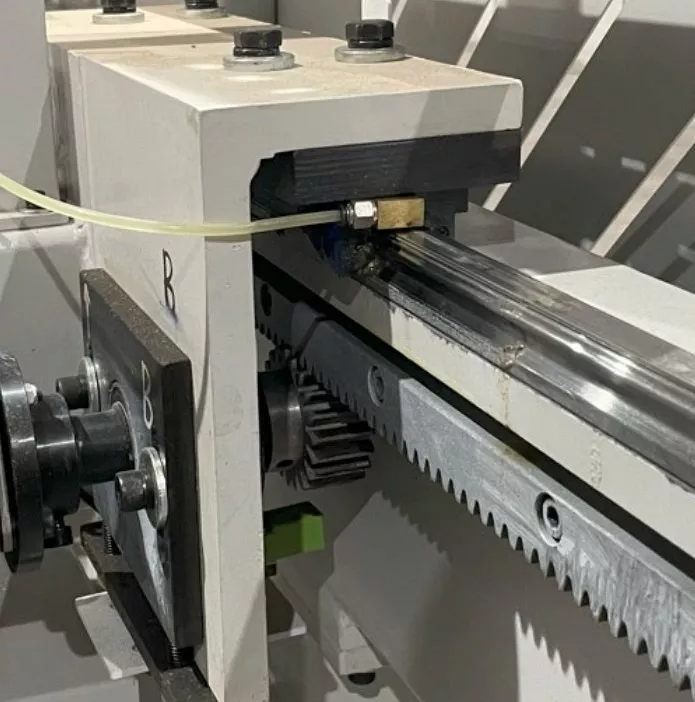

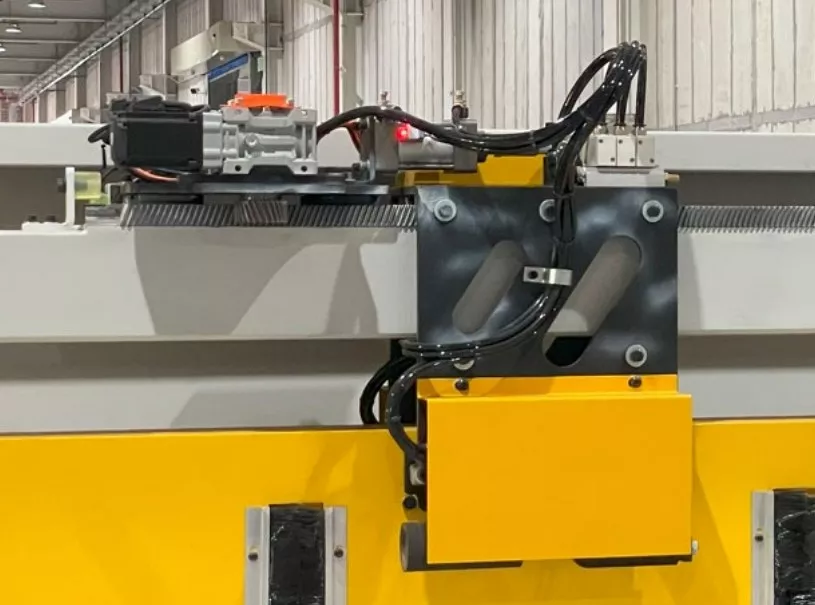

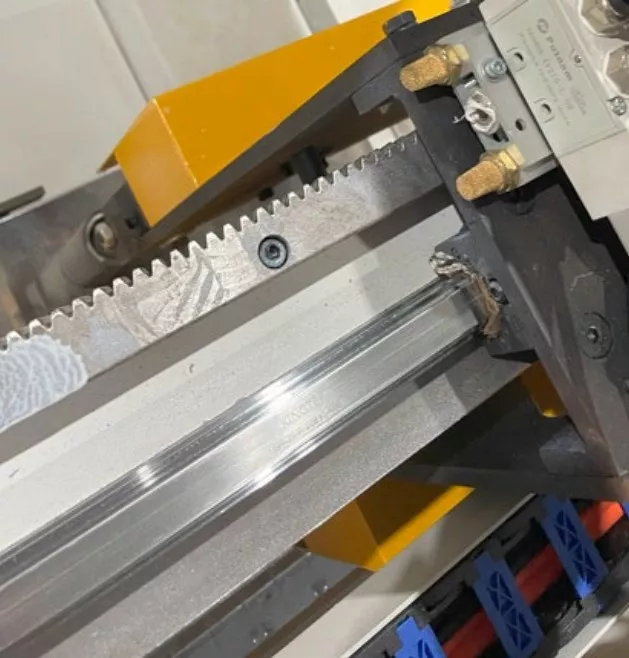

- Precision Helical Rack and Pinion Drives: Ensures smooth and dynamic operation even at the highest speeds, significantly reducing noise levels.

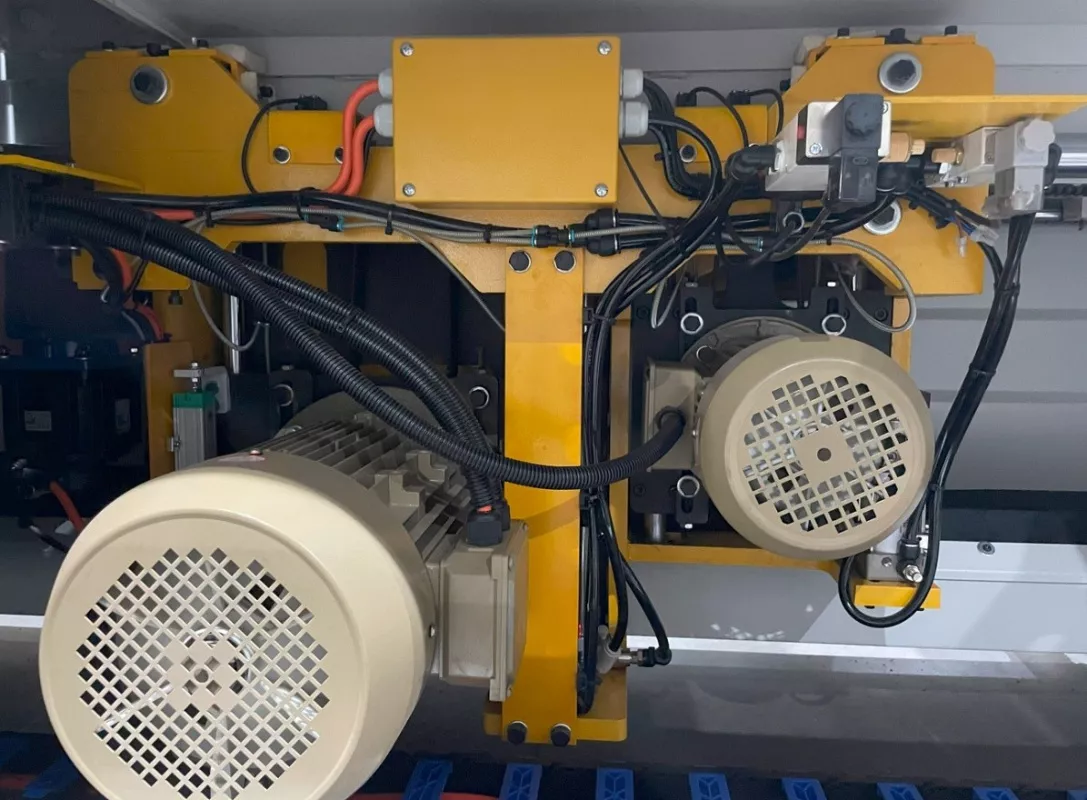

- Main Saw Motor: Connected to the saw blades via a V-ribbed belt, resulting in clean and precise cuts.
- Automated Cutting Adjustments: Cutting size is automatically adjusted according to preset values, dramatically reducing cycle time and increasing efficiency.
- Easy Blade Loading and Unloading: Saw blades can be efficiently loaded and unloaded, minimizing downtime.

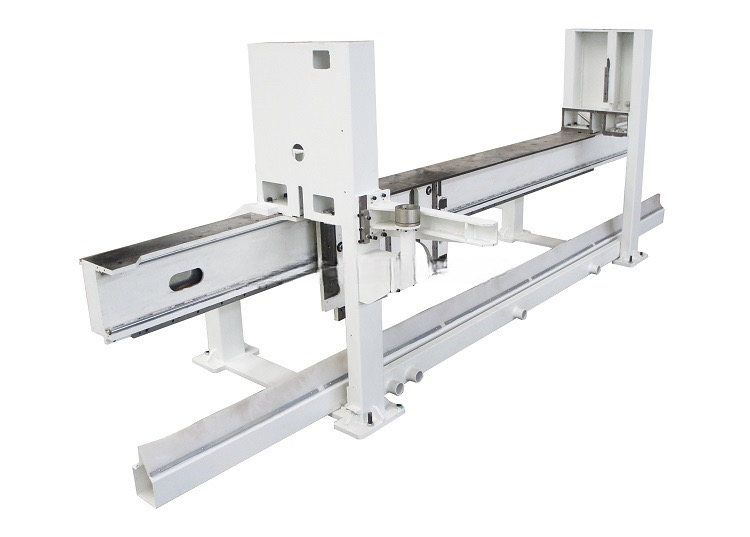

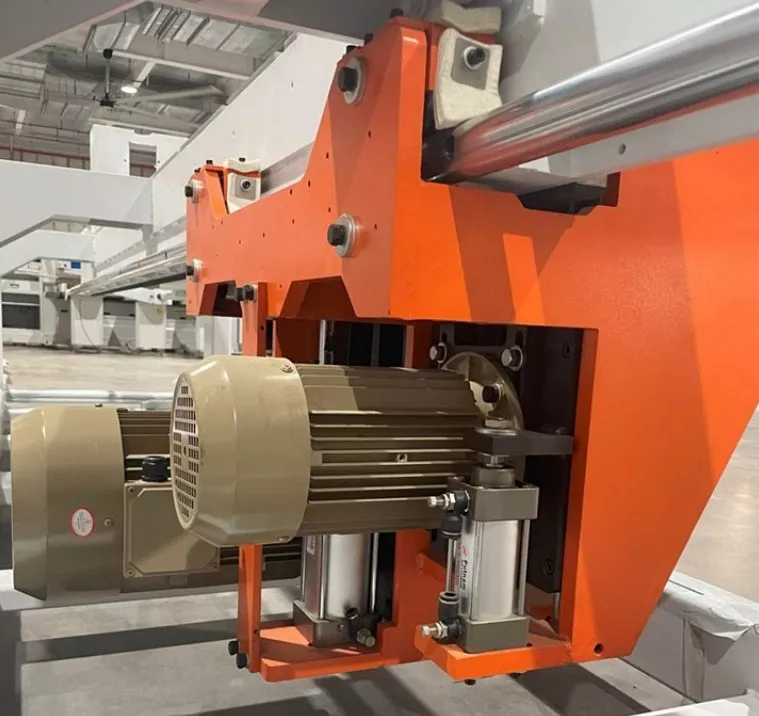

- Electronic Lift Feed: Both the main saw and the scoring saw are equipped with an electronic lift feed on linear guides, providing lasting straight-line precision, rigidity, and excellent cutting finishes.
